Vai al moduloThe Baader H-alpha Ultra-Narrowband Filter 3.5nm is the even narrower-band version compared to the standard Narrowband (6.5nm), designed for maximum possible contrast even under heavily light-polluted skies (Bortle 9/8/7/6).
What it's for
Linear filter with a 3.5nm FWHM passband, recommended for optical systems from f/10 to f/3.5. Compared to the standard Narrowband version, the narrower passband allows for even greater contrast, further reduces the apparent size of stars and reveals the finest details of emission nebulae — essential under heavy urban light pollution.
Baader CMOS-Optimized technology
The filter is coated with Reflex-Blocker™ treatment, which eliminates unwanted reflections even in the presence of auxiliary optics, and with Life-Coat™ technology: a hardened coating that does not flake, does not degrade and lasts the filter's entire lifetime even under the most extreme conditions. The edges are blackened all around, with a visual indicator on the front side for correct orientation during mounting. The filter is individually polished and coated, with no exposed coating edges.
Available formats

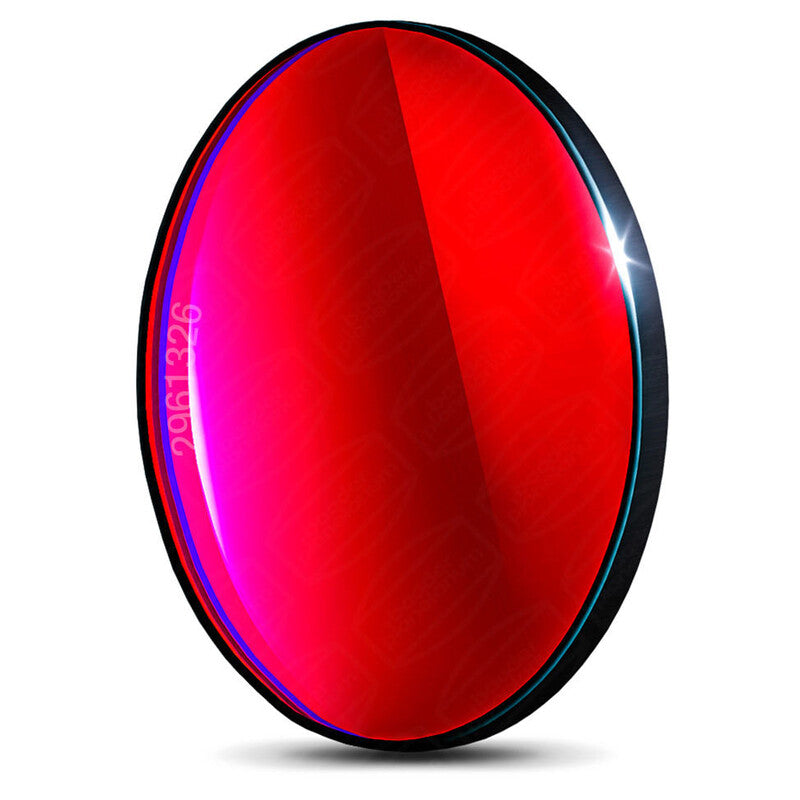

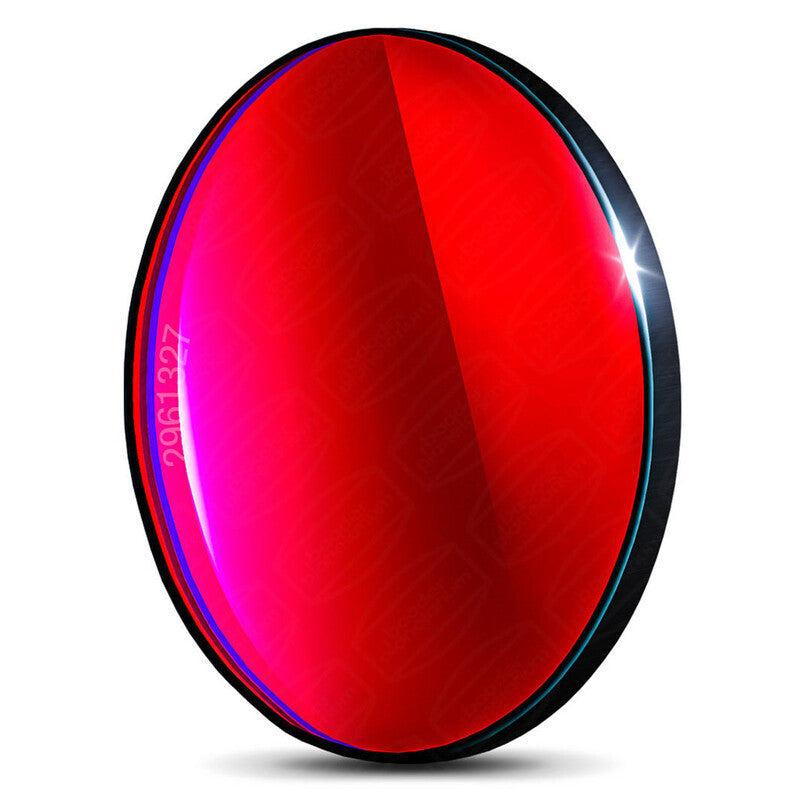

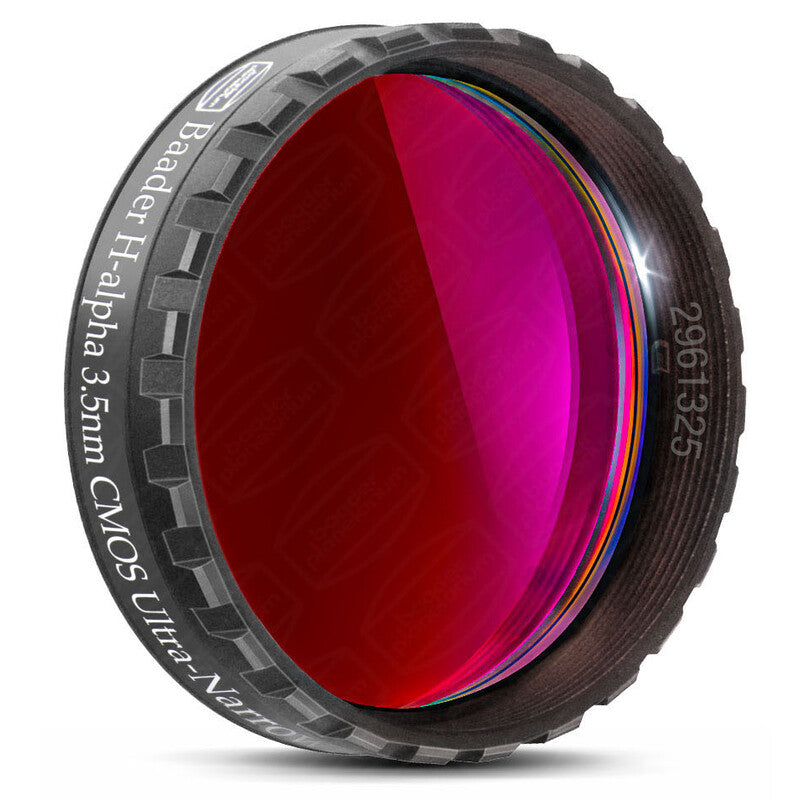

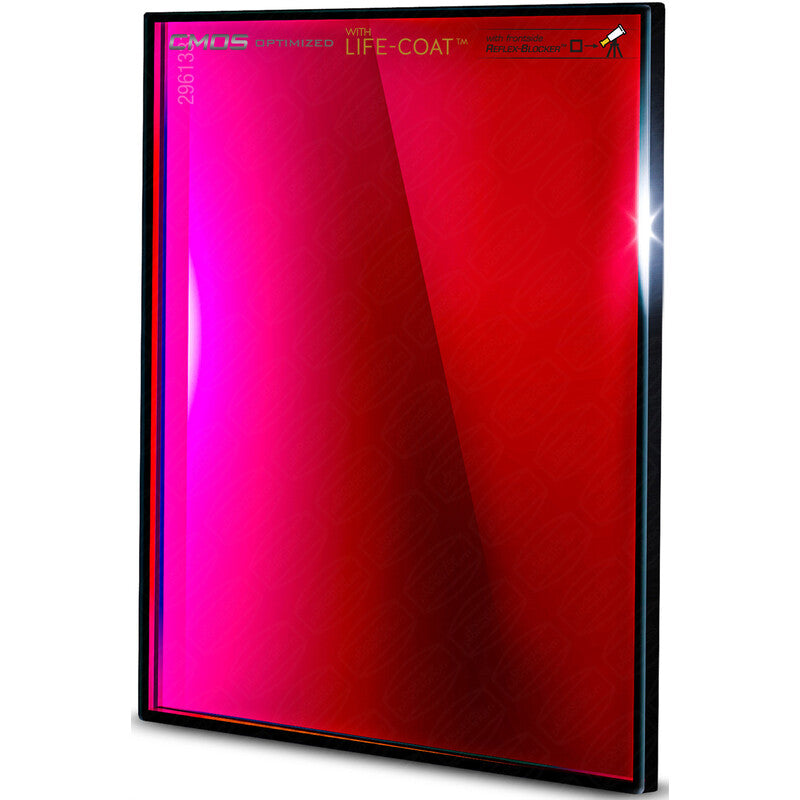

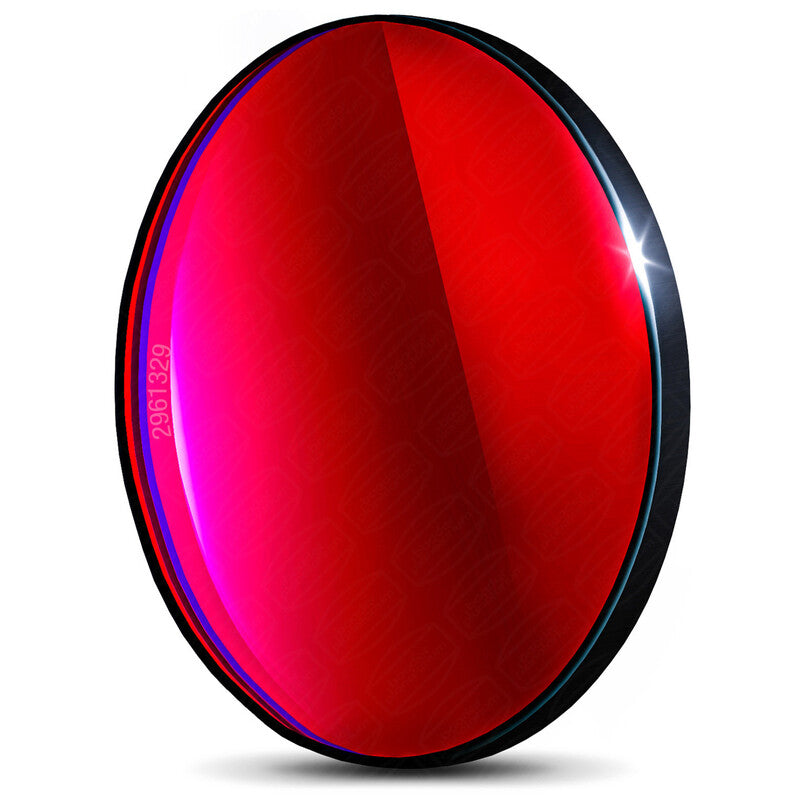

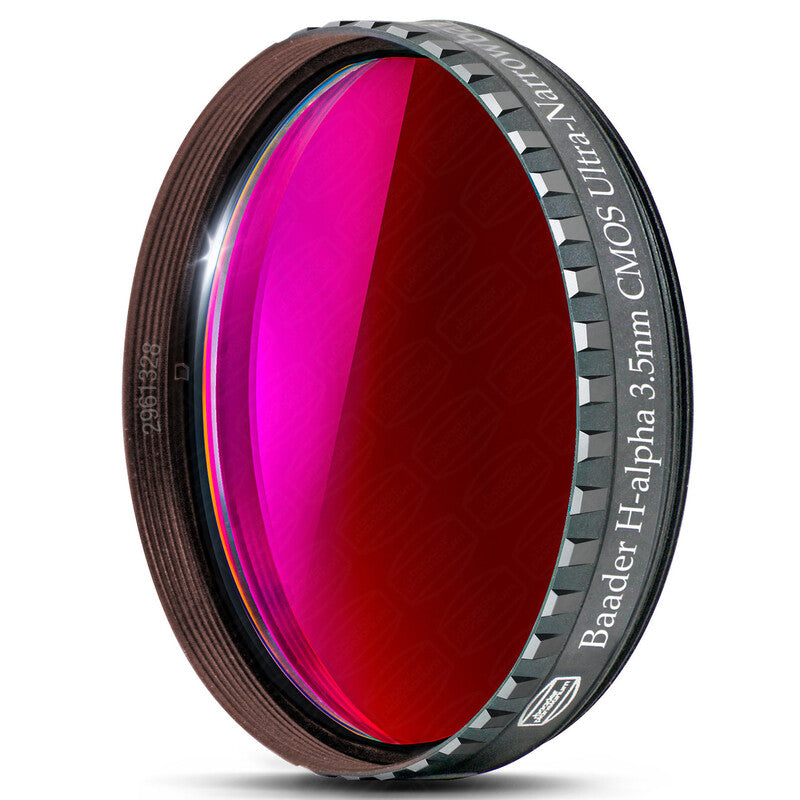

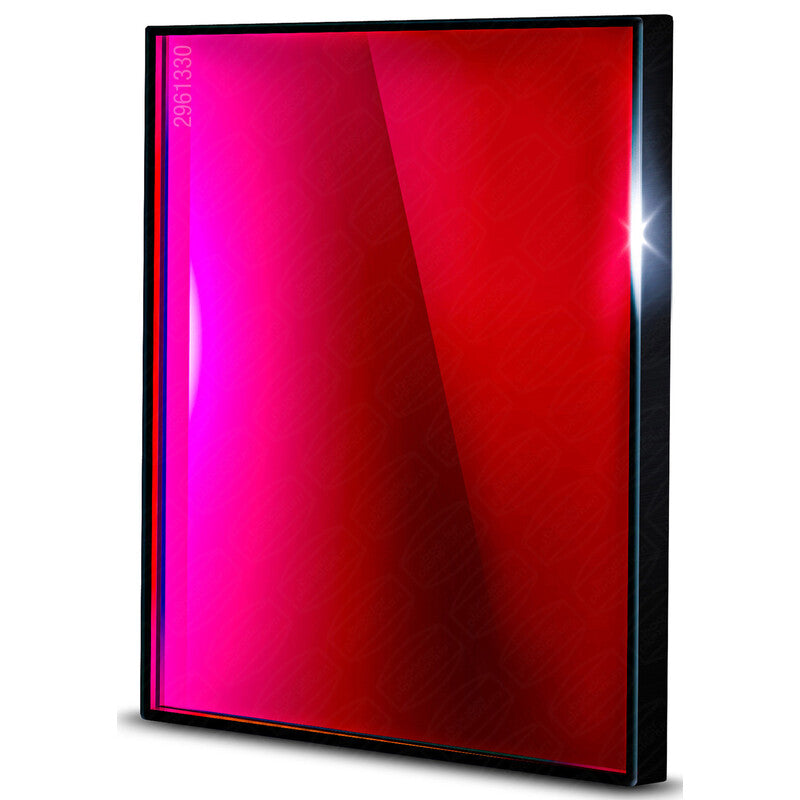

Available in 7 formats: 1¼" (31.8mm), 2" (50.8mm), 31mm, 36mm, 50.4mm, 50×50mm and 65×65mm.
Technical specifications
| Parameter | Value |
|---|---|
| Type | H-alpha Ultra-Narrowband |
| Central wavelength | 656.3 nm |
| Bandwidth (FWHM) | 3.5 nm |
| Recommended optical systems | f/10 to f/3.5 |
| Filter thickness | 2 mm |
| Coating | Reflex-Blocker™, Life-Coat™ |
| Brand | Baader Planetarium |
Who it's for
Ideal for astrophotographers working under heavily light-polluted skies who want the maximum possible contrast for H-alpha imaging, or for those who want to purchase the individual filters of the SHO palette separately to complete or replace an existing set. Compatible with filter wheels and most mono CMOS cameras.
