Vai al moduloSky-Watcher AZ-EQ6 GoTo Equatorial Alt-Azimuth Mount SynScan

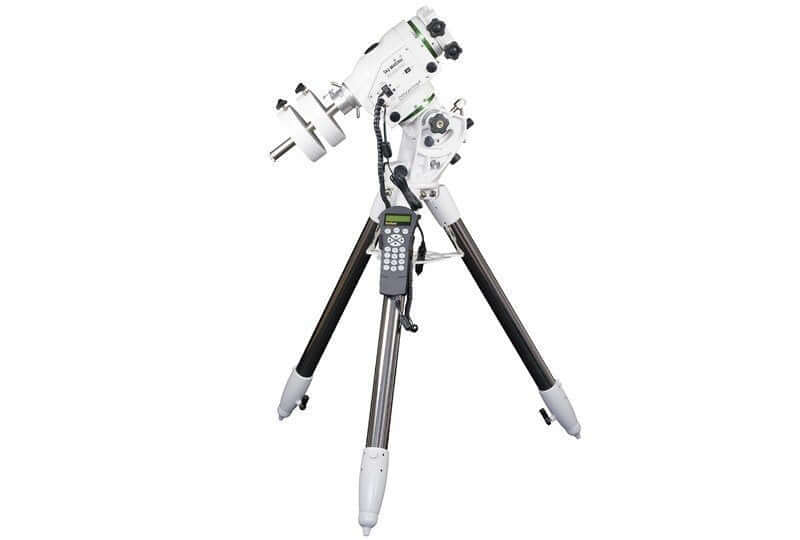

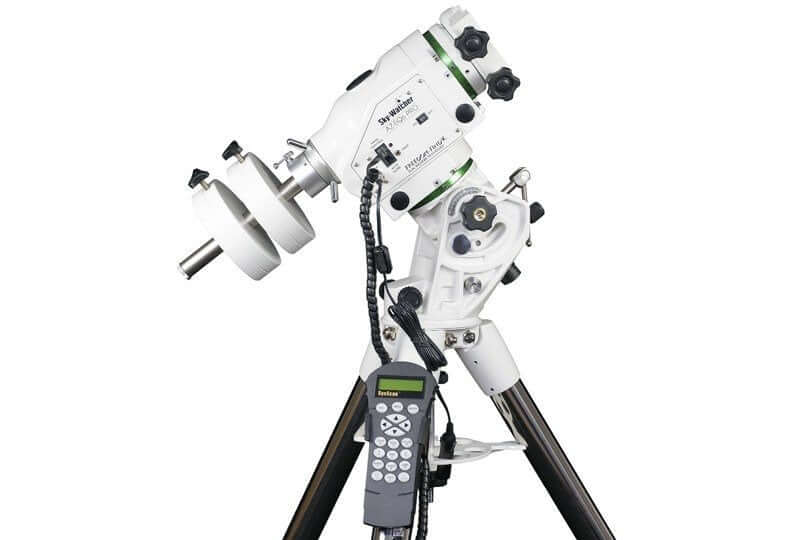

The Sky-Watcher AZ-EQ6 SynScan is an advanced equatorial-alt-azimuth mount designed for superior precision, stability, and versatility. Perfect for both astrophotography and visual observation, it can carry two telescopes simultaneously and switch between equatorial and alt-azimuth configurations in just minutes.
Equipped with the GoTo SynScan system, the AZ-EQ6 features dual encoders and hybrid microstep stepper motors with a belt drive for quiet and accurate tracking. The SynScan controller provides access to a database of over 42,900 celestial objects, including planets, nebulae, galaxies, and double stars, all easily accessible through the intuitive SynScan V4 hand controller.
The mount head is 26% lighter than the classic EQ6, weighing only 15 kg, while offering increased rigidity and improved altitude adjustment. With a payload capacity of up to 25 kg (20 kg for astrophotography), the AZ-EQ6 ensures outstanding stability and precision for long-exposure imaging.
Main Features
- Switches easily between Alt-Azimuth and Equatorial mode.
- Dual telescope mounting capability with fine adjustment for precise alignment.
- Belt-driven transmission for smoother tracking and reduced periodic error.
- PPEC (Permanent Periodic Error Correction) for accurate long-exposure performance.
- Control up to 2 DSLR cameras via included Canon-compatible cables.
- 2- or 3-star alignment with PAE function to refine pointing accuracy.
- Dual firmware for both EQ and AZ modes, upgradable online.
- Compatible with both Vixen and Losmandy dovetail bars.
Tracking and Motion
- Motor speed: from 0.25× to 800×.
- Tracking rates: Sidereal, Lunar, and Solar.
- Stepper motor resolution: 0.8923 arcseconds.
- Dual-axis tracking and automatic PEC correction.
Connectivity and Ease of Use
- PC controllable for remote operation.
- Hand controller firmware upgradable via Internet.
- Assisted polar alignment and park function to retain PEC data.
- Support for programmable DSLR shooting sequences (up to 8 groups).
Technical Specifications
| Specification | Value |
|---|---|
| Type | GoTo Equatorial / Alt-Azimuth Mount SynScan |
| Motor Speed | 0.25× to 800× |
| Tracking Rates | Sidereal, Lunar, Solar |
| Hand Controller | SynScan Version 4 |
| Database | Over 42,900 celestial objects |
| Maximum Payload | 25 kg (20 kg for imaging) |
| Head Weight | 15 kg (without counterweights) |
| Operating Modes | Alt-Azimuth / Equatorial |
Included Accessories
- Adjustable steel tripod
- Two 5 kg counterweights
- Illuminated polar scope
- 12V power cable with cigarette lighter plug
- Secondary mounting head for dual telescope setup
- SynScan V4 hand controller
The Sky-Watcher AZ-EQ6 SynScan represents a major evolution of the classic EQ6, offering increased portability, stability, and performance. It is the perfect choice for advanced astronomers who demand a versatile and precise mount for both visual observation and high-level astrophotography.
