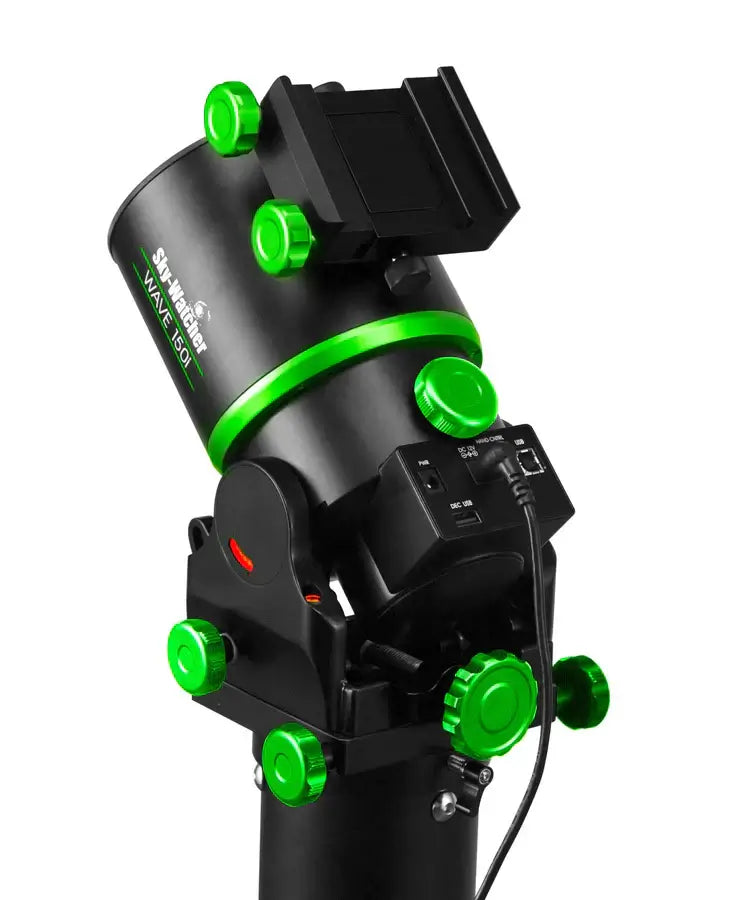

Vai al moduloSkyWatcher WAVE 150i EQ-AZ Harmonic Drive – Compact High-Performance Mount
SkyWatcher WAVE 150i EQ-AZ is the next-generation portable mount designed for demanding astrophotographers. Featuring advanced Harmonic Drive technology, it delivers the perfect balance of power, precision, and portability. Weighing only 5.8 kg and supporting payloads up to 25 kg (with counterweights), this mount is ideal for those who need stability and reliability in the field.
Performance and Load Capacity
- Payload capacity: 15 kg without counterweights / 25 kg with counterweights.
- Stepper motors for RA and DEC with 300:1 gear ratio ensure smooth, backlash-free operation.
- High-precision tracking and GOTO for long-exposure astrophotography and accurate object positioning.
Design and Premium Materials
The body is made from AL6061 CNC-machined aluminum alloy for superior strength and reduced weight. Its compact design (137 × 175 × 240 mm) and lightweight construction (5.8 kg) make it easy to transport for mobile setups. A built-in red LED light illuminates the bubble level and latitude indicator, helping with alignment in low-light conditions.
The fully lockable RA axis simplifies counterweight installation, while adjustable RA/DEC limits and a HOME position feature improve usability and setup management.
Connectivity and Remote Control
- Connections: USB-B port, RJ45 for SynScan hand controller, RJ12 for autoguiding, and SNAP port for direct camera control.
- Built-in Wi-Fi and Bluetooth enable wireless control through the Sky-Watcher SynScan PRO App, compatible with iOS and Android devices.
- Full remote management for alignment, tracking, and GOTO operations.
Power Efficiency and Compatibility
The SkyWatcher WAVE 150i EQ-AZ operates at 12V DC, drawing approximately 0.4 A during tracking and up to 2 A during GOTO movement. The mount is compatible with Losmandy CGE and Vixen CG5 dovetail systems, ensuring broad optical and accessory compatibility.
Optional Accessories
- Carbon fiber tripod with adjustable legs
- Half-pillar
- Counterweight kit
Technical Specifications
| Feature | Details |
|---|---|
| Type | Harmonic Drive Equatorial / Altazimuth |
| Payload Capacity | 15 kg (without counterweights) / 25 kg (with counterweights) |
| Motors | Stepper RA & DEC motors with harmonic drive (RA 17-100, DEC 14-100, ratio 300:1) |
| Latitude Adjustment Range | 0° – 90° |
| Connectivity | Wi-Fi, Bluetooth, USB-B, RJ45, RJ12, SNAP |
| Maximum Slew Speed | 2400X (10°/s) |
| Power Supply | DC 12V – 0.4A (tracking) / 2A (GOTO) |
| Weight | 5.8 kg |
| Dimensions | 137 × 175 × 240 mm |
The SkyWatcher WAVE 150i EQ-AZ delivers precision, mobility, and reliability in one compact system. It is the perfect choice for astrophotographers seeking advanced control, harmonic drive performance, and wireless connectivity for effortless field operation.
